Small batch customization | Consumables/volume/particle size/scene adaptation | Magnetic bead recovery rate>99.9%
Core pain point solutions
Magnetic rack/Plate mismatch Your separation efficiency is being implicitly lost
❌ Universal Magnetic rack/Plate adsorption blind zone>15% | ❌ Edge magnetic decay leads to residual magnetic beads | ❌ Uneven separation of large volume samples
✅ Magnetic rack/Plate customization expert Carbonlinkai – customized for IVD purification/separation/extraction scenarios
⊙ Complete parameter matching design within 72 hours ⊙ Minimum order of 50 sets ⊙ Increase magnetic flux uniformity by 300%
Three core technological barriers
1. Three dimensional dynamic magnetic circuit simulation system
Simulate over 10 million magnetic field trajectories and predict the distribution of magnetic field lines
0.03T ultrafine fluctuation | eliminates edge magnetic attenuation, with a magnetic flux error of less than ± 1.5% for the edge holes of the 96 hole plate
• Supports full scene coverage from trace (50 μ l) to large volume (50ml)
⚡ 2. Multi gradient annular magnetic pole array
4-layer neodymium magnetic ring+12 level gradient arrangement | magnetic pole coverage area expanded by 40%
Zero blind spot adsorption | 0.5 μ m superparamagnetic bead recovery rate>99.9% (measured data)
• Suitable for deep hole plates/centrifuge tubes/microfluidic chip shaped consumables
3. Aerospace grade magnet support
N52H neodymium iron boron permanent magnet | Temperature resistance 150 ℃ | Anti corrosion coating
10-year magnetic loss<0.5% | 10000 cycle magnetic flux attenuation detection report
• Passed IVD equipment EMC interference testing (ISO9001 certification)

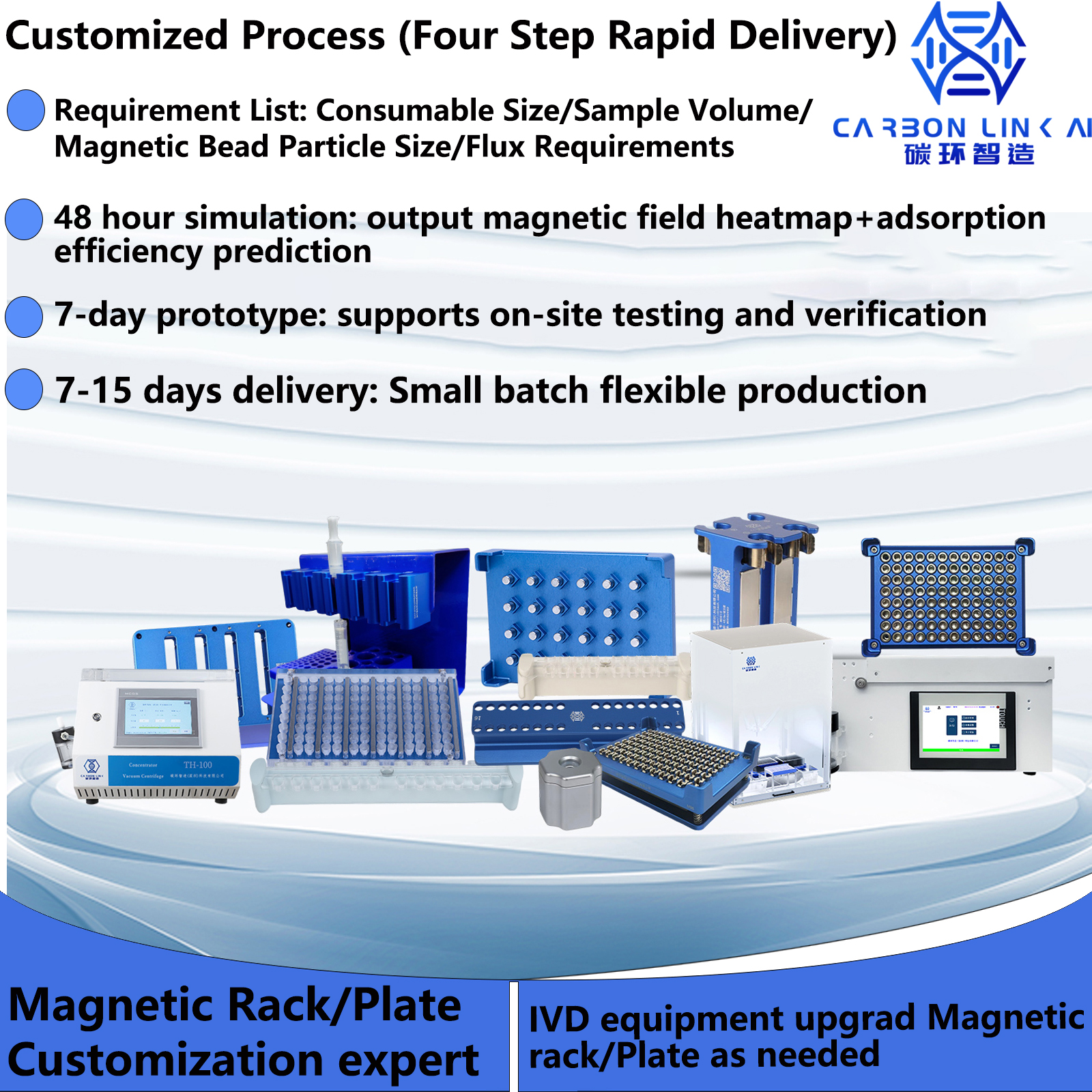

Customized Process (Four Step Rapid Delivery)
① Requirement List: Consumable Size/Sample Volume/Magnetic Bead Particle Size/Flux Requirements
② 48 hour simulation: output magnetic field heatmap+adsorption efficiency prediction
③ 7-day prototype: supports on-site testing and verification
④ 7-15 days delivery: Small batch flexible production
Scenario based value anchor point
IVD nucleic acid extraction
Magnetic bead residue<0.1 μ g | Ct value fluctuation reduced by 30%
chemiluminescent detection
15 second fast aggregation | signal-to-noise ratio increased to 98:1
Biological sample preprocessing
50ml whole blood separation in 10 seconds | Suitable for 4 ℃ low temperature environment
Why choose carbon ring smart manufacturing?
✓ Industry’s only open platform for magnetic circuit simulation | Real time viewing of magnetic field parameters
✓ Accumulated customized cases of 500+| Common choice of leading domestic and foreign life science enterprises
✓ 12-month ultra long warranty | Lifetime maintenance of magnet performance
